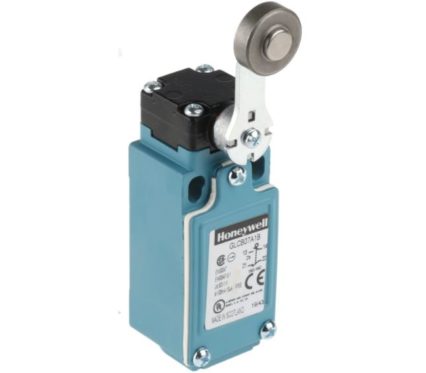

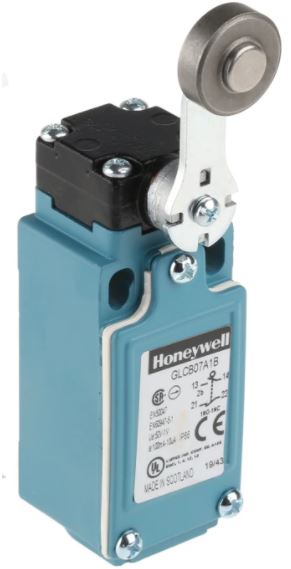

GLCB07A1B

Actuator Type Roller Lever
Pole and Throw Configuration SPDT 1NO/1NC Gold Contacts
Normal State Configuration NO/NC
IP Rating IP66
Maximum Current 100 mA
Housing Material Die Cast Zinc
Maximum ac Voltage 50V
Maximum dc Voltage 50V
Connection Type Internal Screw Terminal Contact Block
Series GLC
Contact Type Snap Action
Terminal Type PG13.5 Conduit
Length 68.5mm
Width 30.5mm
Minimum Operating Temperature -40°C
Dimensions 101.5 x 30.5 x 30 mm
Mounting Orientation EN50047
Standards Met CCC, CE, CSA, UL
Depth 26.35mm
Mechanical Life Minimum 10000000 cycles
Maximum Operating Temperature +85°C
Alkuperämaa GB
