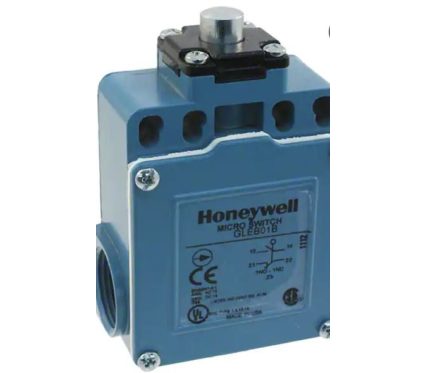

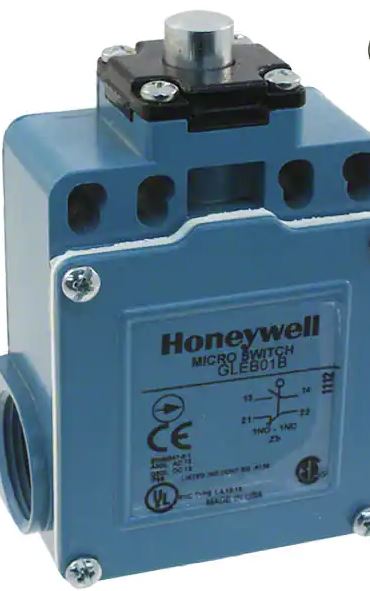

GLEB01B

Actuator Type Plunger
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP67
Maximum Current 6 A
Housing Material Die Cast Zinc
Maximum AC Voltage 300V
Maximum DC Voltage 250V
Series GLE
Contact Type Snap Action
Terminal Type PG13.5 Connector
Length 60mm
Width 65mm
Mechanical Life Minimum 15000000 cycles
Dimensions 60 x 65 x 30 mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Depth 30mm
