Tekniset tiedot
Actuator Type Rotary Lever
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP65, IP66, IP67
Maximum Current 10 A
Housing Material Die Cast Zinc
Maximum ac Voltage 600V
Maximum dc Voltage 250V
Connection Type 0.5 in 14 NPT
Series HDLS
Contact Type Snap Action
Terminal Type Conduit
Length 106.78mm
Width 1.62in
Mounting Orientation Side
Minimum Operating Temperature -12°C
Dimensions 4.204 x 1.62 x 2.437 in
Depth 2.437in
Mechanical Life Minimum 50000000 cycles
Maximum Operating Temperature +121°C
Alkuperämaa US

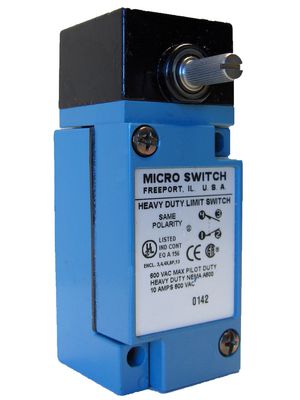

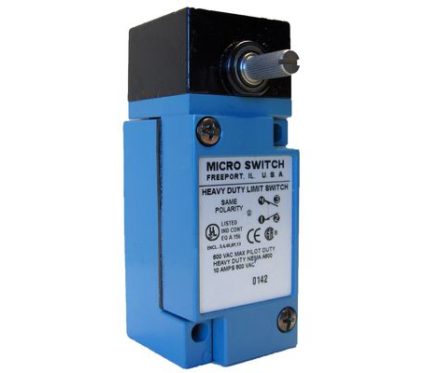

LSYAC1A
Rajakytkin
- Heavy Duty LS-sarjan rajakytkin
- Kiertyvä sivuakseli
- Viton-tiiviste
- 1NC 1NO SPDT Snap Action
- 10A; max.240VAC; max.240VDC
