Technical data
Input circuit MFT IU143S, IU24S
12 … 240 Vac/dc IU14S: 4 VA / 1,5 W IU24S: 6 VA / 2 W
Residual ripple for dc 10%
Drop-out voltage >30% of minimum rated supply voltage
Control contact / Voltage controlled
Parallel switching of loads possible

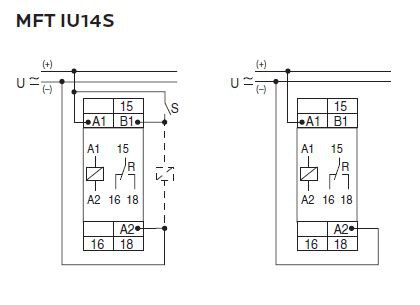

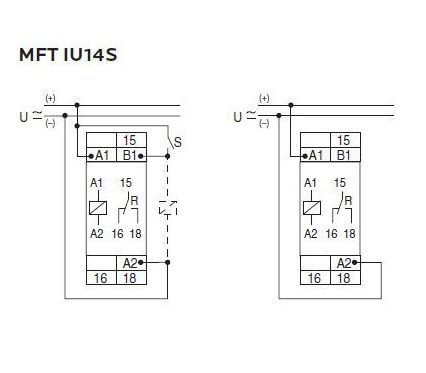

Input not potential free terminals A1 – B1
Trigger level (senitivity) automatic adapted to supply voltage
Max. line length 10 m
Min. control pulse lenght DC 50 ms / AC 100 ms
Accuracy
Base accuracy ±1% of the scale limit
Repeatability of the scale limit <0,5% or ±5 ms
Adjustment accuracy <5% of the scale limit
Temperature influence ≤0,01% / °C
Reaction times
Recovery time 100 ms
