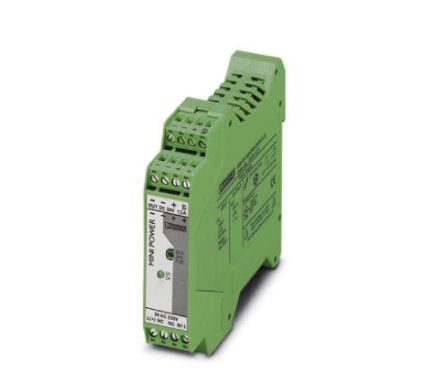

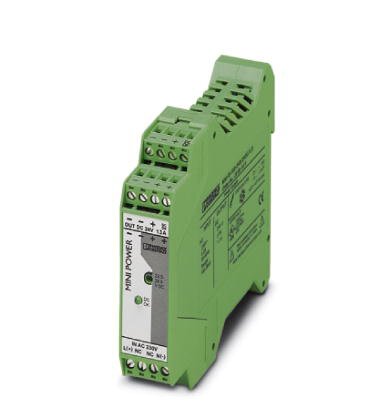

General data
Insulation voltage input/output 4 kV (type test)
3 kV (Routine test)
Mounting position horizontal DIN rail NS 35, EN 60715
Degree of protection IP20
Protection class II (in closed control cabinet)
MTBF (IEC 61709, SN 29500) > 1104000 h (40°C)
Type of housing Polyamide PA, color: green

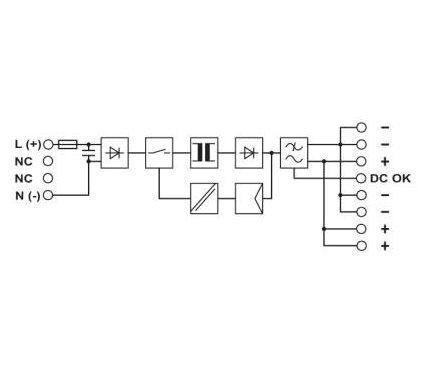

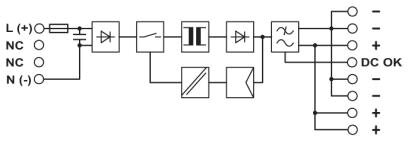

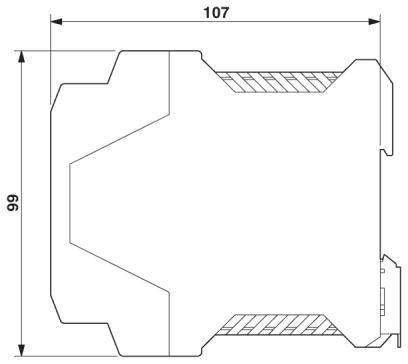

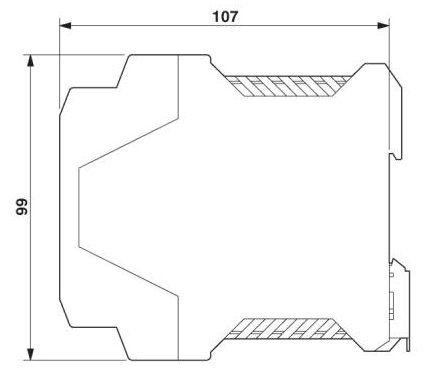

Dimensions W / H / D (state of delivery) 22.5 mm / 99 mm / 107 mm
Weight 0.2 kg
Input data
Nominal input voltage 100 V AC … 240 V AC
Input voltage range AC 85 V AC … 264 V AC
Input voltage range DC 90 V DC … 350 V DC
AC frequency range 45 Hz … 65 Hz
Frequency range DC 0 Hz
Current consumption 0.55 A (100 V AC)
0.23 A (240 V AC)
Inrush current limitation < 15 A (< 0.6 A2s)
I2t 0.6 A2s
Power failure bypass > 20 ms (120 V AC)
> 110 ms (230 V AC)
Typical response time < 1 s
Protective circuit Transient surge protection Varistor
Input fuse, integrated 1.25 A (slow-blow, internal)
Permissible backup fuse B6 / B10 / B16
Output data
Nominal output voltage 24 V DC ±1 %
Setting range of the output voltage 22.5 V DC … 28.5 V DC (> 24 V DC, constant capacity restricted)
Output current 1.3 A (-25 °C … 60 °C)
1.6 A (with POWER BOOST, -25°C … 40°C permanent)
Active current limitation Approx. 5 A (for short-circuit)
Max. capacitive load Unlimited
Control deviation < 1 % (change in load, static 10 % … 90 %)
< 3 % (change in load, dynamic 10 % … 90 %)
< 0.1 % (change in input voltage ±10 %)
Efficiency > 85 % (for 230 V AC and nominal values)
Rise time < 1.2 ms
Residual ripple < 20 mVPP (20 MHz)
Peak switching voltages < 50 mVPP (20 MHz)
Connection in parallel Yes, for redundancy and increased capacity
Connection in series Yes
Protection against surge voltage on the output Yes, < 35 V DC
Resistance to reverse feed 35 V DC
DC OK active
Output description UOUT > 21.5 V: High signal
Voltage ≤ 24 V
Status display ”DC OK” LED green / UOUT > 21.5 V: LED lights up
