| General specifications | ||
|---|---|---|
| Switching function | Normally open/closed (NO/NC) | |
| Output type | Two-wire | |
| Rated operating distance | 20 mm | |
| Installation | flush | |
| Output polarity | AC/DC | |
| Assured operating distance | 0 … 16.2 mm | |
| Actual operating distance | 18 … 22 mm | |
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.77 | |
| Reduction factor rFe | 1 | |
| Reduction factor rBrass | 0.43 | |
| Output type | 2-wire | |
| Nominal ratings | ||
| Switching frequency | AC, 0 … 30 Hz DC, 0 … 100 Hz |
|
| Hysteresis | 1 … 10 typ. 5 % | |
| Reverse polarity protection | reverse polarity tolerant | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 5 V (typ. 2V) DC operation ≤ 8 V (typ. 3 V) AC operation |
|
| Momentary current (20 ms, 0.1 Hz) |
0 … 3000 mA | |
| Operating current | 5 … 500 mA | |
| Rated operating current | 500 mA 50/60 Hz | |
| Lowest operating current | 5 mA | |
| Off-state current | ≤ 1.5 mA | |
| Usage category | AC12 , AC140 , DC12 , DC13 | |
| Time delay before availability | ≤ 300 ms | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Error indicator | flashes when overcurrent | |
| Functional safety related parameters | ||
| MTTFd | 540 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Rated operating voltage | 24 … 250 V DC / 24 … 230 V AC | |
| Operating voltage | 20 … 300 V DC / 20 … 253 V AC | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 |
|
| Approvals and certificates | ||
| Protection class | II | |
| Rated insulation voltage | 250 V | |
| Rated impulse withstand voltage | 2.5 kV | |
| UL approval | cULus Listed, General Purpose ”For use in NFPA 79 Applications only” For overcurrent protection, install a fuse with a rated current of max. 3 A and at least 300 V AC/DC |
|
| CCC approval | Ue 75VDC – 250VDC Ue 75VAC – 230VAC | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 °C (-13 … 185 °F) | |
| Storage temperature | -25 … 85 °C (-13 … 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Connection type | terminal compartment | |
| Information for connection | A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 % |
|
| Core cross-section | up to 2.5 mm2 | |
| Minimum core cross-section | without wire end ferrule 0.5 mm2 , with connector sleeves 0.34 mm2 | |
| Maximum core cross-section | without wire end ferrule 2.5 mm2 , with connector sleeves 1.5 mm2 | |
| Housing material | PA 6.6 / metal | |
| Sensing face | PA 6.6 | |
| Housing base | plastic | |
| Degree of protection | IP67 | |
| Mass | 225 g | |
| Note | Tightening torque: 1.8 Nm (housing) | |

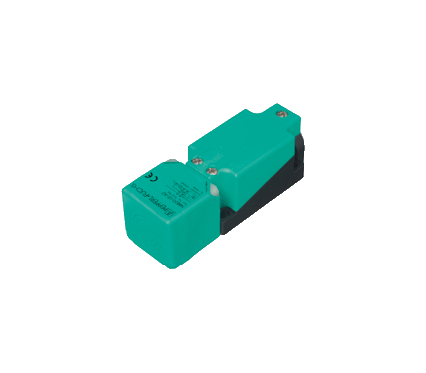

NBB20-U1-UU
Induktiivinen anturi
- Tunnistusetäisyys Sn: 20 mm
- Uppoasennus sallittu
- Suorakaidemalli (L x K x S): 40 mm x 40 mm x 118 mm
- Käyttöjännite 20-300VDC / 20.253VAC, 2-johdin
- Lähtö NO/NC
- Kytkentärasia, M20x1,5 läpivienti
