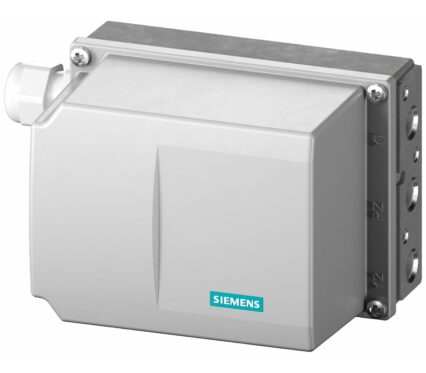

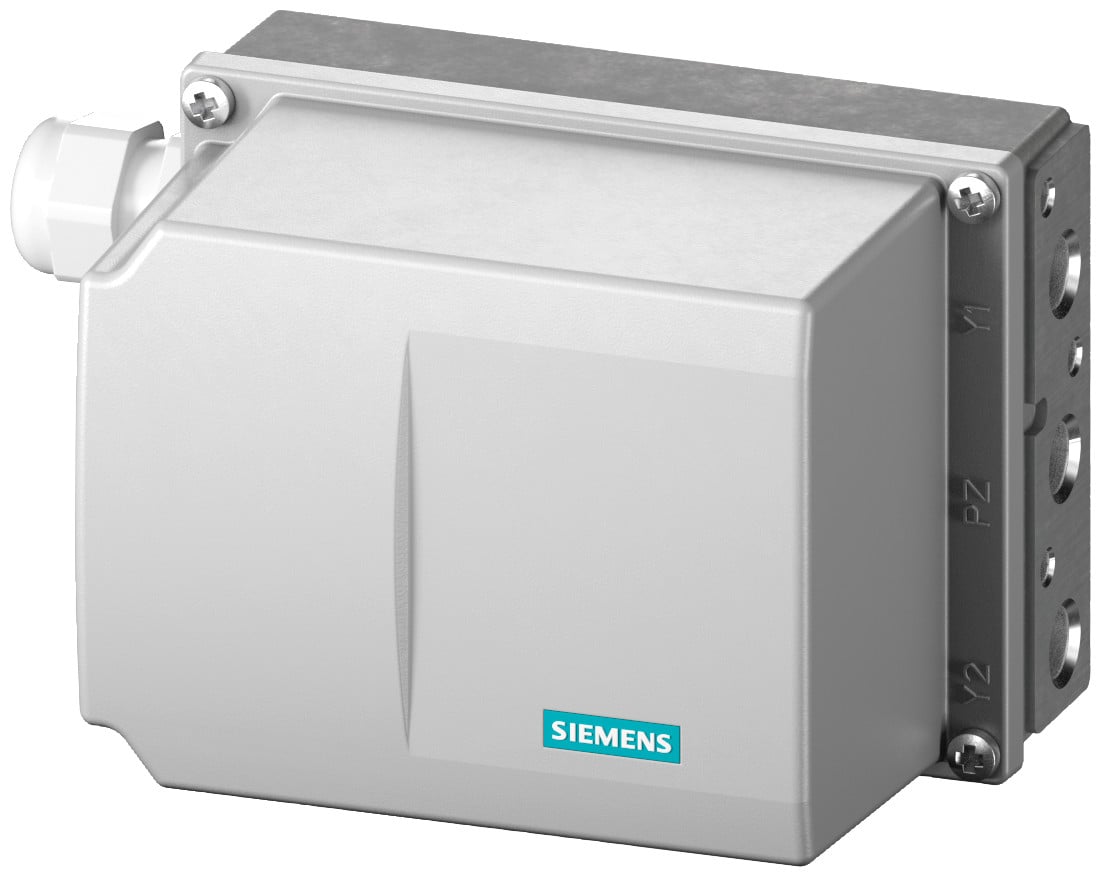

SIPART PS100 asennoitin on oikea valinta aina kun tarvitset yksinkertaista, nopeaa ja luotettava asennoitinta vakiosovelluksiin.
Technical data
Enclosure Aluminum, aluminum/polycarbonate
Digital input/ digital
output 1 DI / 1 DO
Limit values 1 (electronic)
Communication 4 … 20 mA, HART, Bluetooth
Stroke range 10 … 130 mm
(longer strokes on request)
(0.12 … 5.12“)
Range of rotation 10 … 100°
Required air quality Class 3 as per ISO 8573-1
Ambient air temperature –20 … +80 °C
Pneumatic auxiliary power 1.4 to 7 bar (20.3 … 101.5 psi)
Air throughput
– Inlet to actuator 9.8 m³/h (5.76 SCFM)
(at Δp = 6 bar)
– Outlet from actuator 19.2 m³/h (11.30 SCFM)
(at Δp = 6 bar)
Degree of protection Type 4X, IP66
Explosion protection • ATEX, IECEx: Ex i, Ex e, Ex t
• FM/CSA: IS, NI/I/2, DIP
